Ranya Stainless, located in Muscat, Oman, has earned a solid reputation as a reliable manufacturer and supplier of top-notch welding consumables, including AWS Class ER410 TIG filler welding wires and rods. Known for its unwavering commitment to quality and precision, Ranya Stainless offers products that are engineered to create strong, durable, and corrosion-resistant welds, even in the toughest industrial settings. The company caters to various sectors, such as petrochemical, power generation, marine, and heavy fabrication, ensuring that its consumables adhere to strict metallurgical standards. By blending cutting-edge manufacturing techniques with thorough quality control, Ranya Stainless has established itself as a trusted partner for TIG welding solutions throughout Oman and the broader GCC region.
The AWS Class ER410 TIG filler wire and rod is a martensitic stainless steel alloy that contains around 12% chromium, along with low carbon content and minimal alloying elements. In terms of performance, ER410 weld deposits are known for their high hardness, impressive tensile strength, and moderate resistance to corrosion. This filler metal excels in wear resistance, maintains stability during the welding process, and exhibits good toughness after undergoing post-weld heat treatment. It’s particularly well-suited for applications that demand crack resistance and dependable performance under stress and in moderately corrosive environments.
| Classification | AWS A5.9, ER410 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410 MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.12 | 11.5-13.5 | 0.6 | 0.75 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 78 |
| Tensile Strength, kpsi: | 89 |
| Elongation%, min: | 24 |
Contact us to get a quick quote for your requirement.

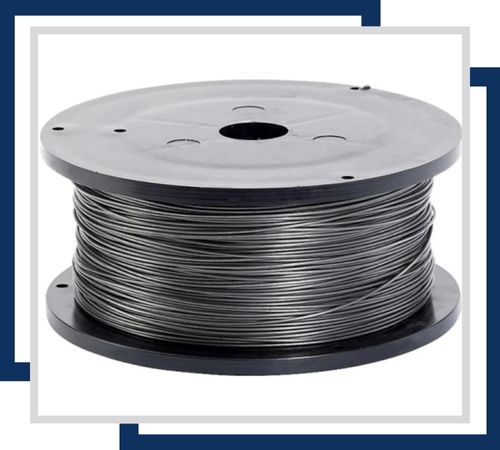

ER410 MIG filler wire offers high strength and wear resistance, ideal for welding martensitic stainless steels in applications requiring durability and high-temperature performance.

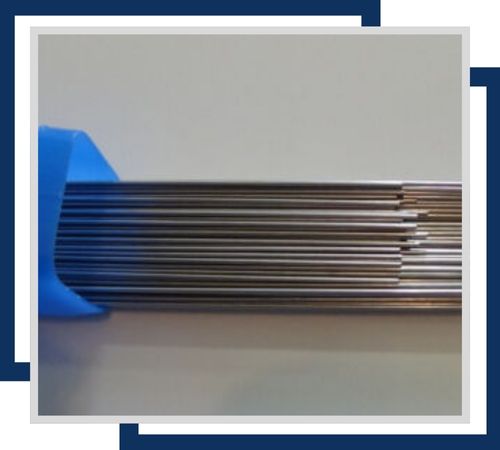

ER410 TIG filler wire provides excellent hardness and abrasion resistance, suitable for welding stainless steel components exposed to high stress and wear, ensuring strong, durable joints.

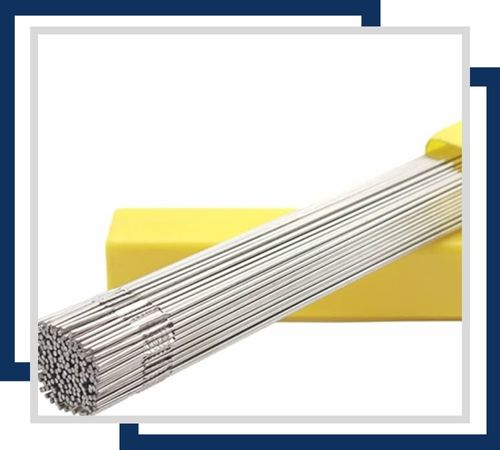

ER410 TIG filler rod delivers superior hardness and wear resistance, used for welding martensitic stainless steels in high-stress environments, offering strong, reliable welds and durability.
Each AWS Class ER410 MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials. To prevent any damage or corrosion during transit. We are committed to guaranteeing customer satisfaction by providing timely deliveries. Through efficient transportation methods. Along with the products, we also supply all the necessary documentation to our clients at the time of delivery, ensuring complete transparency and support throughout the process.
AWS Class ER410 TIG filler welding wire and rod are commonly utilized for welding and repairing martensitic stainless steels, especially grade 410. Typical uses include turbine components, valves, pumps, shafts, and various industrial machinery that face wear, stress, and moderate corrosion. This filler metal is also employed in petrochemical equipment, power generation parts, and marine structures. Its capability to produce high-strength, wear-resistant welds makes it an excellent choice for both fabrication and repair tasks in challenging industrial conditions.
