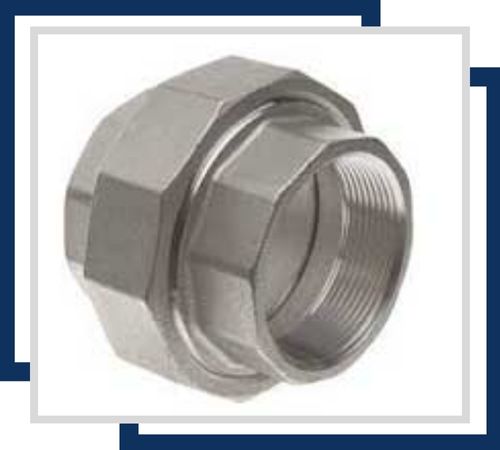

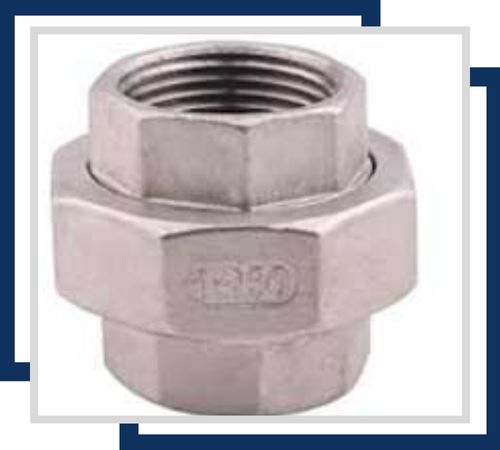

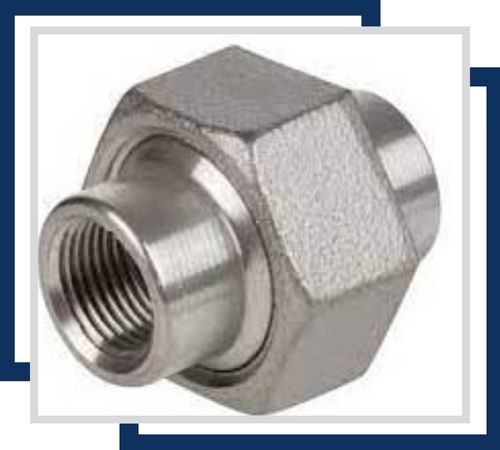

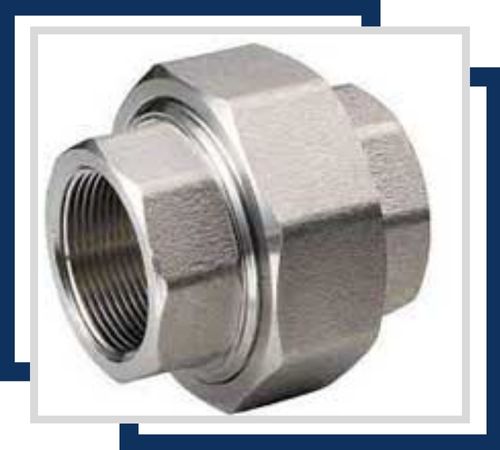

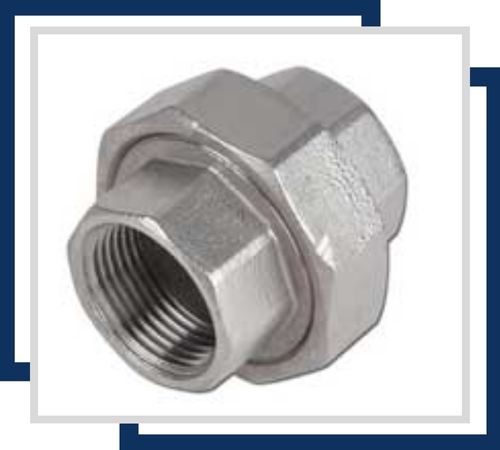

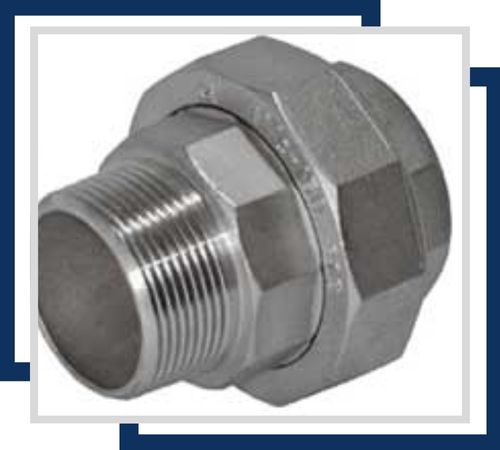

Ranya Stainless, a trusted manufacturer and supplier based in Muscat, Oman, is dedicated to offering high-quality stainless steel products designed to meet modern industry needs. Among its reliable range, Stainless Steel Unions are known for their precision, durability, and leak-proof performance. Crafted using advanced techniques, these unions ensure easy installation and secure connection between pipelines. Ranya Stainless emphasizes quality, consistency, and customer satisfaction, making it a preferred partner for clients across varied sectors. Whether for industrial, commercial, or domestic use, the company delivers Stainless Steel Unions that combine strength, corrosion resistance, and long service life.
Stainless Steel Unions are typically manufactured from stainless steel grades containing chromium (16–20%), nickel (8–12%), and controlled amounts of carbon, manganese, and silicon. This composition provides excellent resistance to corrosion, heat, and chemical exposure. Mechanically, these unions offer high tensile and yield strength, ensuring dependable performance under pressure. Their robust construction, good hardness, and ability to withstand vibration make them suitable for secure pipe connections. The smooth finish, dimensional accuracy, and long-lasting mechanical stability of stainless steel unions make them ideal for demanding industrial and fluid-handling environments.
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB TO 4″ NB |
| Form | Threaded Union, Forged Threaded Union |
| Pressure Ratings | Up to 20,000 psig (1,378 bar) |
|---|---|
| Temperature Ratings | Up to 1000° F (537° C) |
| Class | 33000 LBS, 6000 LBS, 4500 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Types | NPT, ISO/BSP, SAE threads |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Export to | Singapore, Indonesia, Muscat, Brazil, Ukraine, India, Thailand, Korea, Oman, Spain, Canada, USA, Ireland, Iran, Egypt, Saudi Arabia, Peru, etc |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Sizes available | 1/16 to 1 in. |
| Main Types | Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
| SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
Contact us to get a quick quote for your requirement.
Moreover, test certificates such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% Radiography Test Report, and Third Party Inspection Certificate are provided by most Ranya Stainless Unions. Such documents act as proof for the quality and reliability of the product to its users regarding high performance and durability. Commitment to seamless and trustworthy experience where these Stainless Steel Unions meet the best standards of quality and compliance.
Stainless Steel Unions typically do not require additional corrosion protection coatings due to their inherent resistance to rust and corrosion. However, coatings may be applied for extreme environments or aesthetic purposes.
Yes, Stainless Steel Unions are fully recyclable. Stainless steel is a sustainable material that can be reused without losing its properties, making it an environmentally friendly choice for various applications.
When selecting Stainless Steel Unions, consider factors like material grade, pressure ratings, size compatibility, corrosion resistance, and the specific application environment to ensure optimal performance and durability.
Stainless Steel Unions are available in various configurations, including threaded, butt-weld, socket-weld, and flanged unions, offering different connection types to suit diverse industrial applications and pressure requirements.
Stainless Steel Unions are widely used across industries where strong, leak-proof, and easily detachable pipe connections are essential. They are commonly utilized in plumbing systems, chemical processing units, food and beverage industries, water treatment facilities, and pharmaceutical setups. Their corrosion resistance makes them ideal for handling water, steam, gases, and corrosive fluids. These unions also support quick maintenance or replacement of pipeline sections without disturbing the entire system. In HVAC networks, fire-fighting lines, hydraulic systems, and industrial equipment, Stainless Steel Unions offer reliability, durability, and efficiency, making them an essential component in modern piping solutions.
