Home > Sheet and Plates > Stainless Steel 201 Sheet and Plates
Ranya Stainless, a top-notch manufacturer and supplier based in Muscat, Oman, specializes in high-quality Stainless Steel 201 Sheets and Plates that are designed for strength, durability, and resistance to corrosion. Produced under rigorous quality standards, these sheets and plates guarantee consistent thickness, a smooth finish, and long-lasting performance. Known for their excellent formability, toughness, and cost-effectiveness, Ranya Stainless’s SS 201 Sheets and Plates are perfect for a variety of applications. Their ability to handle moderate corrosive environments, mechanical stress, and temperature fluctuations makes them a reliable choice for construction, fabrication, automotive, and general engineering projects throughout Oman and the Middle East.
The composition of Stainless Steel 201 Sheets and Plates primarily includes iron, chromium, nickel, and manganese, which together provide good corrosion resistance and enhanced mechanical strength. The increased manganese content boosts toughness, formability, and workability while keeping costs in check. On a mechanical level, SS 201 sheets and plates showcase impressive tensile and yield strength, solid hardness, and excellent fatigue resistance. Their durability, flexibility, and ability to withstand mechanical stress and moderate heat make them ideal for structural, fabrication, and industrial applications that demand reliable long-term performance.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | JIS, AISI, ASTM, GB, DIN, EN |
| Range | : | 1000/1219/1500/2000mm,etc |
| Conventional common size | : | 4 inch X 8 inch ,10 inch x 5 inch |
| Thickness | : | 0.2 mm to 20mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grades | : | SS 201 UNS S20100 |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Contact us to get a quick quote for your requirement.

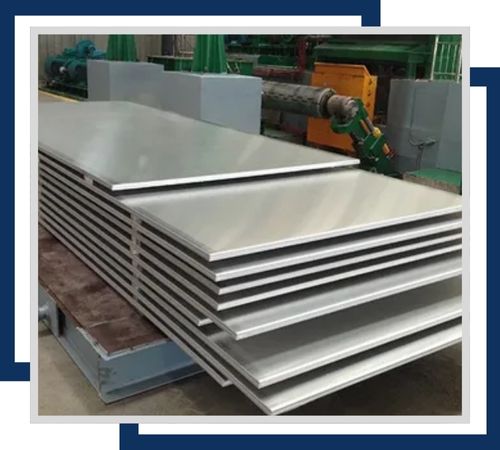

Stainless Steel 201 hot rolled plates are resistant to corrosion and are used in various structural applications. They are available in sizes from 6mm to 100mm thick, and can be ordered to any size.

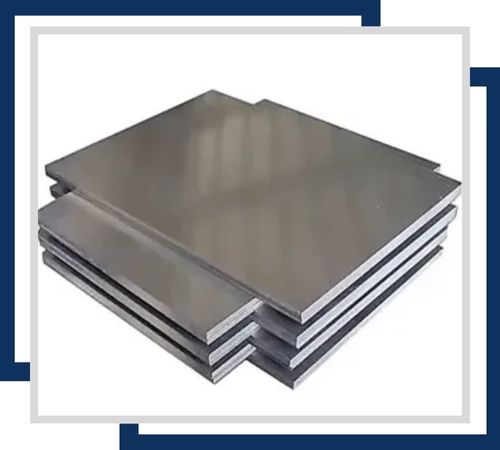

The stainless steel 201 cold rolled sheets offer excellent corrosion resistance and a smooth surface finish. They are available in the thickness range of 0.3mm to 3mm and widths ranging from 1000mm to 2000mm, thus applicable for various purposes.

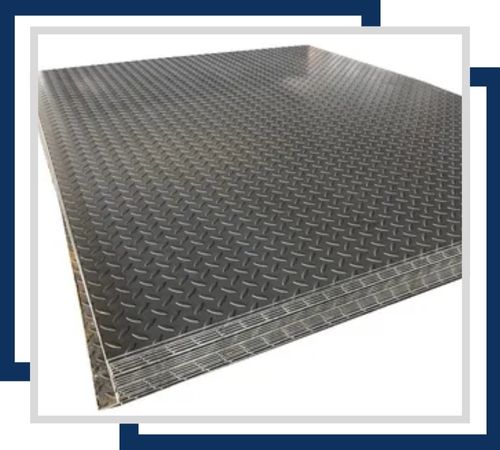

Stainless Steel 201 chequered sheets are used for flooring and other high-traffic areas due to their improved slip resistance and durability. These sheets are available in thicknesses of 1mm to 6mm and standard sizes of 1000mm x 2000mm.

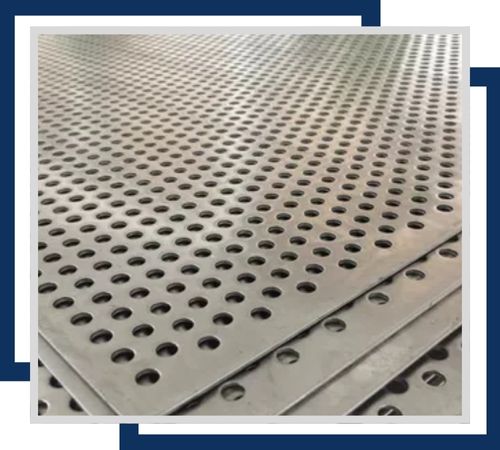

Stainless Steel 201 perforated sheets have outstanding corrosion resistance and find applications for purposes of ornamentation and function. They are also available with holes of various diameters and sizes, commonly within the range of 0.5mm to 6mm in thickness, and sizes from 1000mm x 2000mm.

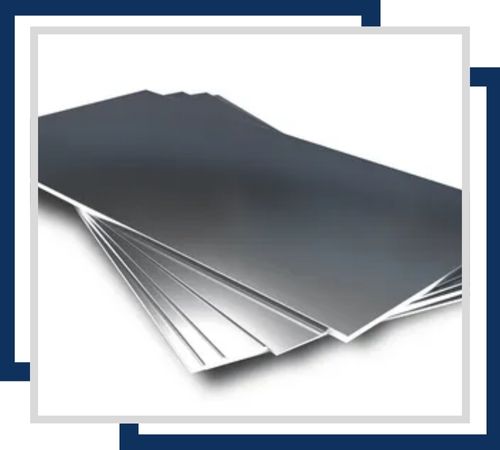

Stainless Steel 201 shim plates possess good resistance against corrosion and accurate thickness for spacing and alignments. It is generally available in thickness ranging from 0.1mm to 5mm along with sizes up to 1000mm x 2000mm.

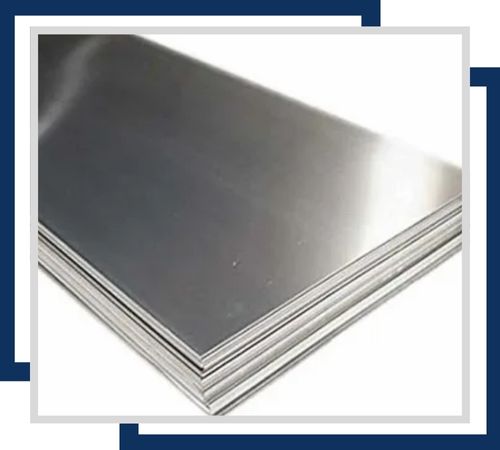

Stainless Steel 201 Polished Sheet and Plates have high-quality reflective finishes. It has good strength at high temperatures that offer abrasion and corrosion resistance in applications having processes.
Ranya Stainless assures hassle-free delivery while giving detailed documents regarding high-quality Stainless Steel 201 Sheets and Plates. It issues a commercial invoice, a packing list, fumigation certificate, heat treatment chart, quality assurance plan, and an NABL-approved lab test report that verify the genuinity and exceptional quality of products and help generate trust in its valuable customers. In addition, our Stainless Steel 201 Sheets and Plates are offered with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. The certifications show how we are completely customer-centric as well as strongly committed to quality products.
These Stainless Steel 201 Sheets and Plates are widely utilized in industries that require durable, corrosion-resistant, and budget-friendly stainless steel materials. They’re commonly found in construction frameworks, architectural structures, and the fabrication of machinery, equipment, and furniture. The automotive and transportation sectors use them for body panels and structural components. In the food processing and light chemical industries, they serve in equipment, storage tanks, and piping systems. Additionally, SS 201 Sheets and Plates are perfect for handrails, railings, decorative panels, and various engineering projects, ensuring long-lasting performance and reliability.
