Ranya Stainless, a prominent manufacturer and supplier located in Muscat, Oman, has built a solid reputation for providing top-notch Stainless Steel 316Ti Fasteners designed to meet the rigorous demands of various industries. With a strong focus on quality, precision, and reliability, the company delivers fasteners that perform exceptionally well in high-temperature and corrosive environments. Their 316Ti fasteners are crafted using cutting-edge technology and stringent quality controls, ensuring they offer superior performance and a long lifespan. Catering to clients throughout Oman and the Middle East, Ranya Stainless remains a trusted provider of durable, high-strength stainless steel fastening solutions that adhere to international standards.
Stainless Steel 316Ti Fasteners are made up of chromium, nickel, and molybdenum, with the addition of titanium to enhance stabilization against intergranular corrosion. This alloy boasts impressive resistance to chlorides, acids, and high-temperature oxidation. On a mechanical level, 316Ti fasteners deliver high tensile and yield strength, outstanding toughness, and dependable performance under thermal stress. The inclusion of titanium improves structural stability during welding and extended heat exposure, ensuring that the fasteners retain their mechanical integrity and durability even in tough operating conditions.
| Standard | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

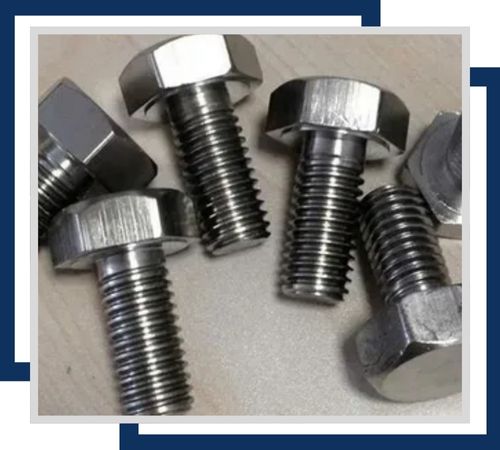

Corrosion-resistant and highly durable, Stainless Steel 316Ti Bolts are ideal for high-temperature and marine applications. Available in sizes ranging from M6 to M30, with lengths up to 300 mm. They offer excellent resistance to pitting and crevice corrosion.

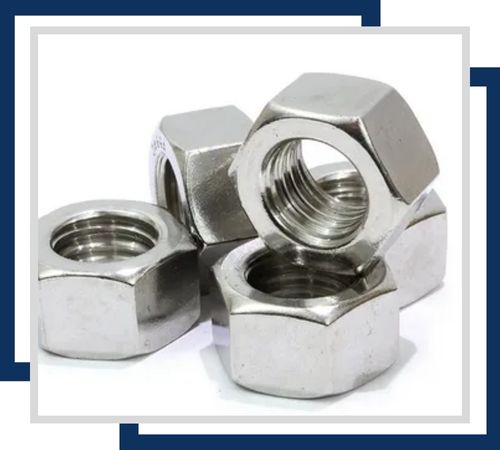

SS 316Ti Nuts are designed for exceptional corrosion resistance, especially in chloride environments. Typically available in sizes from M6 to M30, with various thread pitches. They complement 316Ti bolts and are used in high-temperature and aggressive environments.

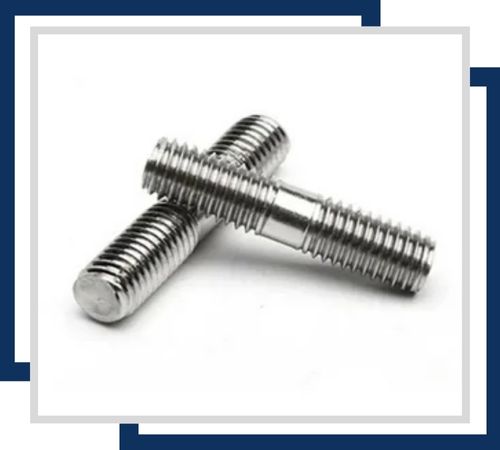

Offering superior resistance to corrosion and high strength, these Stud Bolts come in sizes from M6 to M30, with lengths ranging from 50 mm to 300 mm. Ideal for use in severe service conditions where high tensile strength is needed.

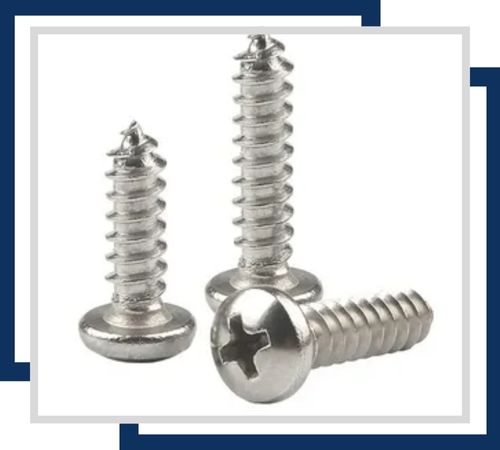

Known for their corrosion resistance, these screws are used in marine and industrial applications. Available in sizes from M2 to M20, with lengths up to 200 mm. They provide reliable performance in environments exposed to chemicals and saltwater.

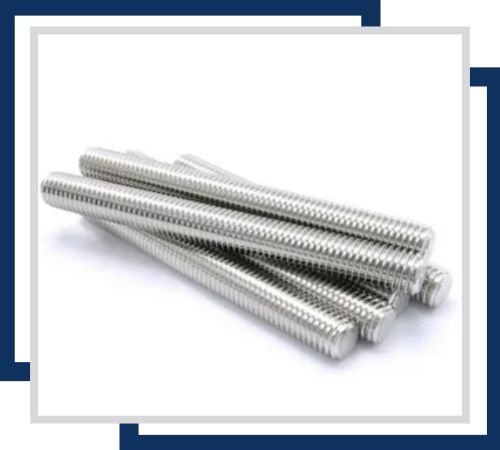

Corrosion-resistant and high-strength, these rods are available in diameters from M6 to M30 and lengths up to 3 meters. They are used in construction and industrial applications where resistance to harsh environments is critical.

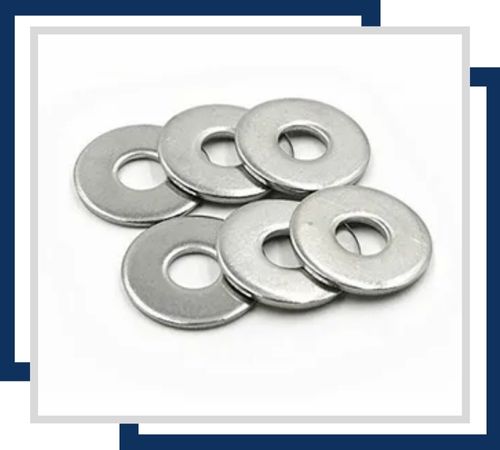

Offering excellent resistance to corrosion, these washers are available in sizes from M6 to M30. They ensure even load distribution and prevent damage to surfaces. It is ideal for use with 316Ti bolts and nuts in aggressive environments.
Our expertise in packaging Stainless Steel 316Ti fasteners carefully in Muscat and OMAN. While considering wooden boxes, pallets, and eco-friendly packing materials, we are very meticulous in using high-quality standards industrial packaging material. The procedure is carried out in a dust-free environment to maintain cleanliness from dirt, dust, or any other foreign materials that compromise product quality. These fasteners are prepared for shipping once careful attention has been paid to all details. They reach customers in excellent condition, regardless of distance.
These Stainless Steel 316Ti Fasteners find extensive use in industries where resistance to corrosion, heat, and mechanical stress is essential. They are frequently employed in chemical and petrochemical plants, marine equipment, oil and gas refineries, and pharmaceutical processing facilities. Their high-temperature strength makes them perfect for furnace components, heat exchangers, and thermal processing systems. In construction and infrastructure projects, they are favored for their durability and ability to withstand harsh weather conditions. Moreover, these fasteners are utilized in food processing equipment, desalination plants, and power generation systems, providing reliable performance and long-term stability in demanding environments.
