Ranya Stainless, a well-respected manufacturer and supplier located in Muscat, Oman, specializes in high-quality Stainless Steel 316Ti Forged Fittings that are built to provide exceptional reliability in tough industrial settings. With a strong focus on precision engineering and adherence to international standards, the company delivers fittings known for their outstanding corrosion resistance, enhanced durability, and long-lasting stability. Ranya Stainless is committed to timely deliveries, consistent product performance, and a customer-centric approach, making them a go-to source for industries that need high-performance forged fittings. Their Stainless Steel 316Ti Forged Fittings are perfect for applications that involve high temperatures, corrosive substances, and critical process conditions throughout Oman and the Middle East.
These fittings are made from a blend of chromium, nickel, and molybdenum, with added titanium to boost stabilization and prevent carbide precipitation. They boast impressive mechanical properties, including high tensile strength, good yield strength, and remarkable toughness even at elevated temperatures. The inclusion of titanium enhances structural stability during extended heat exposure, effectively preventing intergranular corrosion. Additionally, these fittings are highly resistant to chloride-induced pitting and crevice corrosion. Their unique combination of thermal stability, corrosion resistance, and mechanical durability makes them ideal for demanding, high-pressure applications.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316TI UNS (S31635), DIN (1.4571)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We tested and certified Stainless Steel 316Ti Forged Fittings. All the products are inspected, including dimensional checks, material analysis, and strength testing. Every product is certified to international standards, ensuring high performance, durability, and reliability for critical applications in different industries.

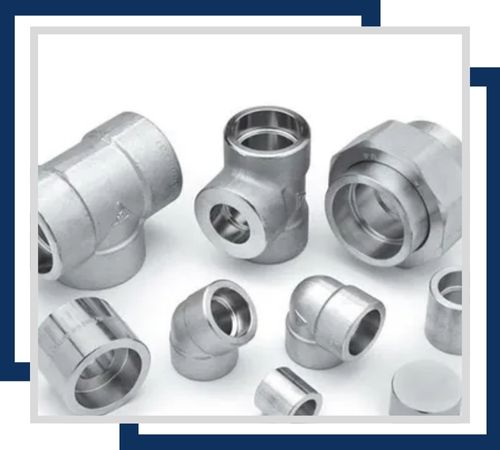

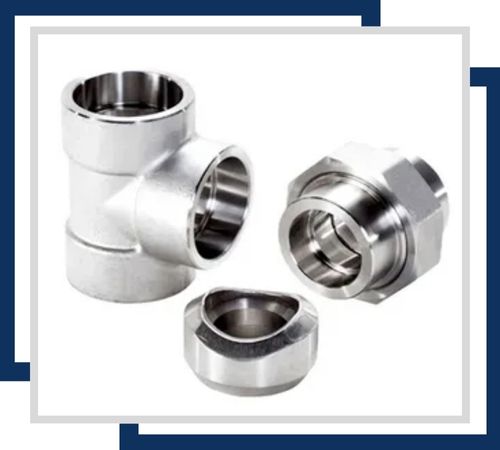

Ideal for high-temperature applications, these fittings offer excellent corrosion resistance and are typically available in sizes ranging from 1/2″ to 4″. They are used in industries like chemical processing and oil refineries.
Known for superior corrosion resistance, especially against sulfuric and phosphoric acids, these fittings come in various sizes from 1/8″ to 4″. They are commonly used in marine and industrial environments.

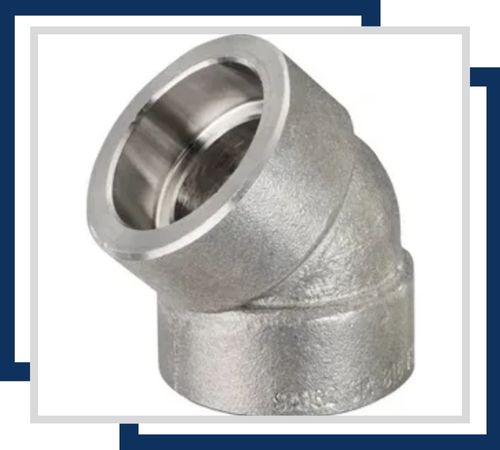

This elbow fitting allows for a smooth 45-degree change in pipe direction and is available in sizes from 1/2″ to 6″. It provides excellent resistance to corrosion and is used in high-pressure applications.

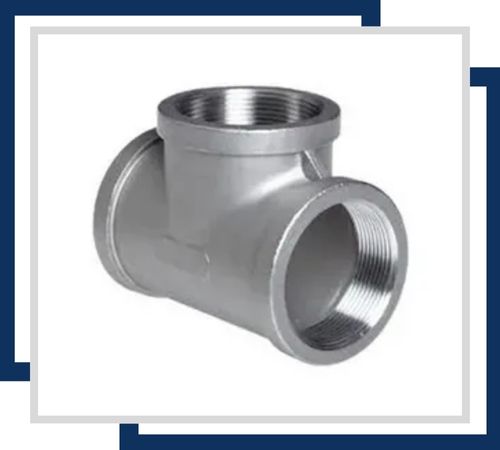

This tee fitting allows for branching out of the main pipe, available in sizes from 1/2″ to 6″. It offers exceptional resistance to corrosion and is used in a variety of piping systems.

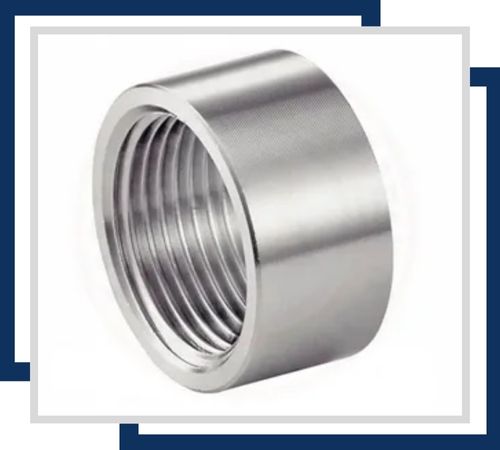

Used to connect two pieces of pipe, this half coupling is available in sizes ranging from 1/4″ to 6″. It is highly resistant to corrosion and suitable for high-temperature environments.

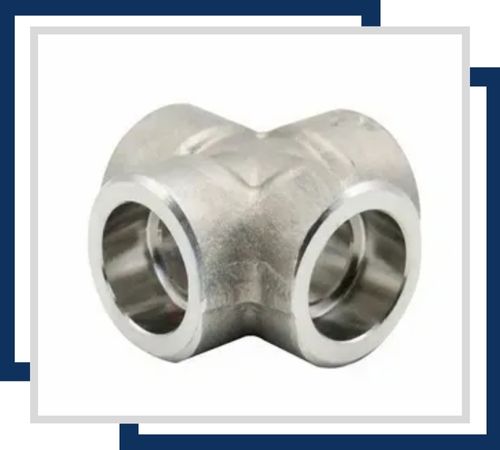

This fitting provides a cross junction, available in sizes from 1/2″ to 4″. It ensures high resistance to corrosion and is used in complex piping arrangements.
Stainless Steel 316Ti Forged Fittings find extensive use in industries that require heat and corrosion resistance, such as petrochemical plants, oil and gas refineries, and chemical processing facilities. They play a crucial role in high-temperature piping systems, heat exchangers, reactors, and desalination plants. The food processing, pharmaceutical, and marine sectors depend on these fittings for hygienic, durable, and corrosion-resistant connections. Furthermore, they are utilized in power generation, water treatment plants, and offshore platforms where long-term performance is essential.
