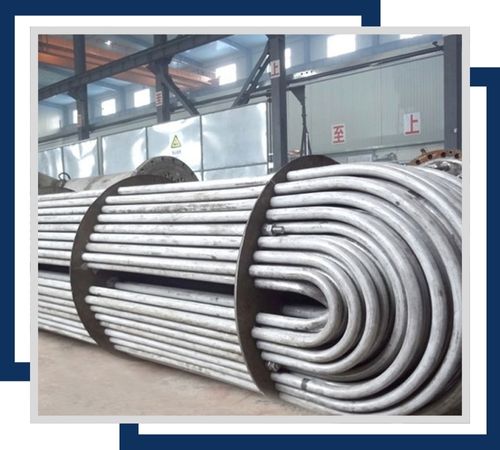

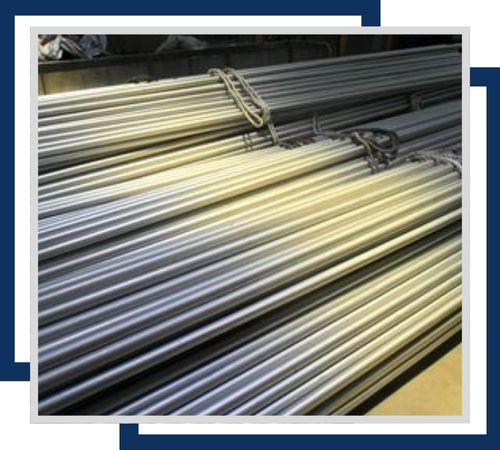

Ranya Stainless, a prominent manufacturer and supplier located in Muscat, Oman, specializes in high-performance Stainless Steel Heat Exchanger Tubing tailored to meet the rigorous demands of thermal and fluid transfer systems. Renowned for its outstanding durability, resistance to corrosion, and precise dimensional accuracy, these tubes guarantee efficient heat exchange even in tough environments. Ranya Stainless is committed to upholding international quality standards and employs cutting-edge manufacturing techniques to create tubing that boasts superior mechanical strength and smooth internal surfaces. With a focus on reliability, technical know-how, and customer-centric service, the company has established itself as a trusted source of Stainless Steel Heat Exchanger Tubing across various industrial sectors in Oman and beyond.
The Stainless Steel Heat Exchanger Tubing primarily consists of iron, chromium, and nickel, with carefully controlled amounts of carbon, manganese, molybdenum, and silicon to boost corrosion resistance and thermal stability. It showcases excellent mechanical properties, including high tensile strength, good yield strength, and remarkable resistance to oxidation at elevated temperatures. This tubing offers exceptional toughness, consistent wall thickness, and robust structural integrity, ensuring dependable heat transfer. Its smooth inner surface helps reduce scaling and fouling, while the alloy composition guarantees long-lasting performance in corrosive and high-temperature settings.
| Size Range | 10 mm OD to 50.8 mm OD |
| Stainless Steel Heat Exchanger Tube Outside Diameter | 6.00 mm to 101.60 mm |
| Wall Thickness | 0.70 mm to 8.00 mm |
| Length | up to 20 m (65.62 ft) Length & Customed Required Length |
| Stainless Steel Heat Exchanger Tube Dimenisons | ASTM, AISI, ASME/ ANSI, JIS, DIN, EN, GB, BS, SUS |
| Standard | ASTM A 213, A 268, A 269, A 789, Equivalent to ASME, EN, JIS Etc. |
| Stainless Steel Heat Exchanger tube Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
| SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
| SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
| 347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
| 410 | min. | 11.5 | ||||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
| 446 | min. | 23.0 | 0.10 | |||||||||
| max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
| 904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |||
| Stainless Steel Heat Exchanger tube Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 317 | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 347 | 8.0 g/cm3 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 | Psi 32000 , MPa 220 | 35 % |
Contact us to get a quick quote for your requirement.
Upon completion of production, the range of Stainless Steel Heat Exchanger Tubing is passed to our dedicated quality control team, who conduct a series of destructive and nondestructive tests that will use the most advanced tools and techniques available in the market today in order to ensure compliance and performance reliability. Once testing is completed the tubes are packaged properly using high-quality packing materials. To ensure their safety while in transit. A timely and efficient delivery schedule is maintained, ensuring clients that their products are delivered within a short time as well as without any holdups. On site, documentation in the form of certificates and “as-built” inspection reports are issued with the products. This is avoiding all doubts and giving customers full satisfaction.

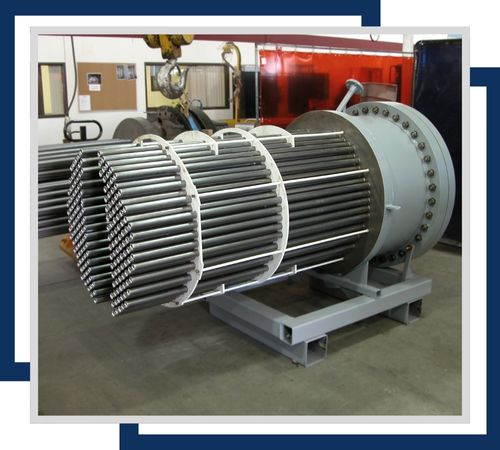

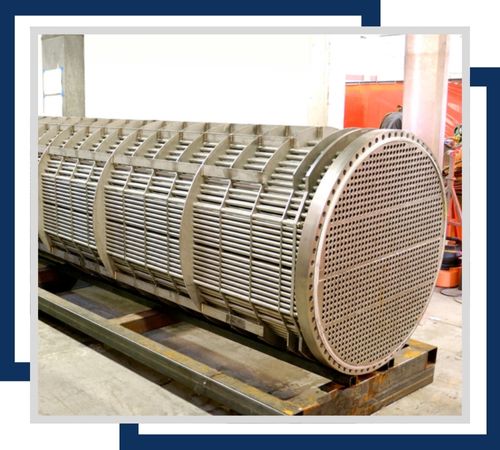

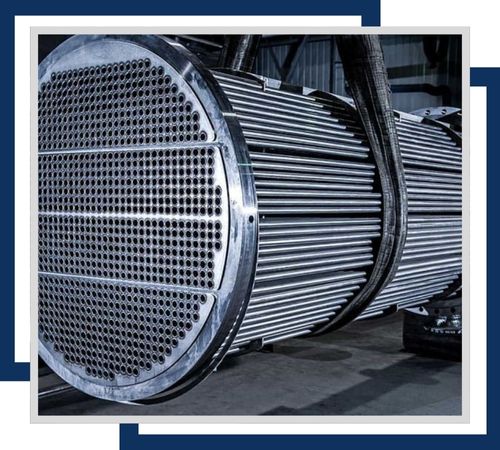

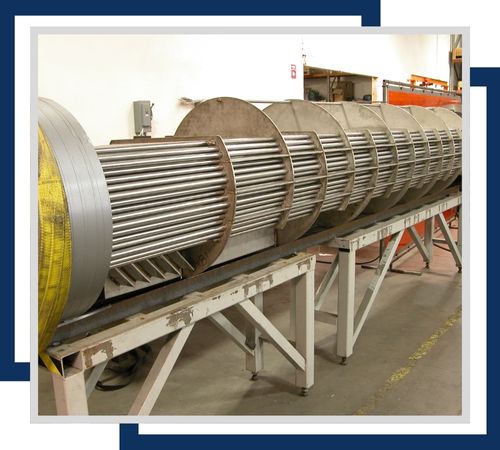

Stainless Steel Heat Exchanger Tubing finds extensive use in industries that demand efficient heat transfer and durability. In chemical and petrochemical plants, it plays a crucial role in condensers, evaporators, and process heat exchangers. Oil and gas facilities utilize it for coolers, reboilers, and offshore heat transfer equipment. Power generation plants depend on it for boiler tubes, superheaters, and thermal recovery systems. Additionally, it is employed in HVAC units, food processing equipment, desalination plants, and pharmaceutical manufacturing, where hygiene and temperature control are paramount.
